Architectural Mesh - SPIRA-MIX-Architectural mesh Model

Español

English

Back to Mesh Models

Previous Model

Next Model

Sample

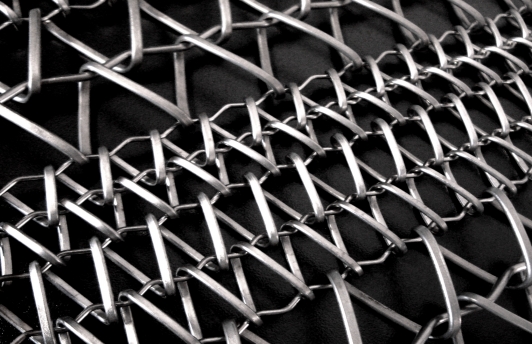

Sample (Detail View)

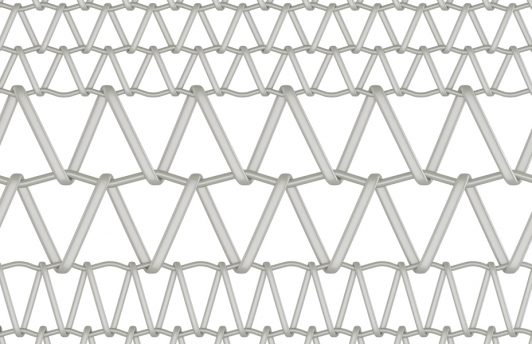

Sample (Front View)

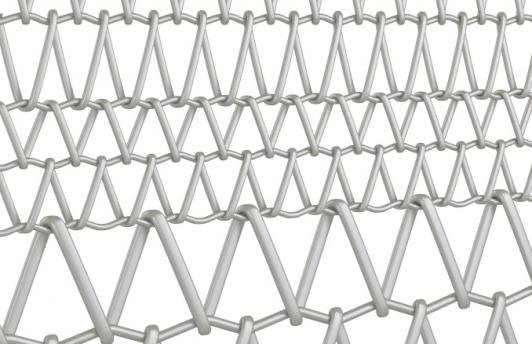

Sample (3/4 View.)

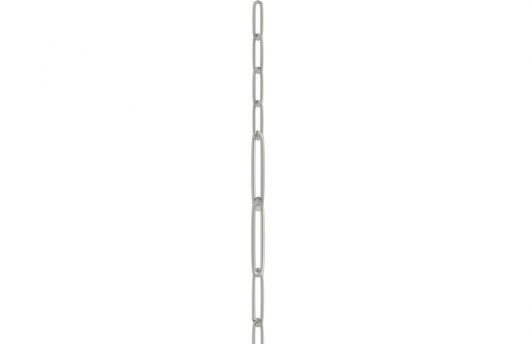

Sample (Side View)

Previous | 1 de 4 | Next

Previous | 2 de 4 | Next

Previous | 3 de 4 | Next

Previous | 4 de 4 | Next

Technical Specs

Model
SPIRA-MIX

Material
Acero Inoxidable

Mesh type
Flexible
One direction

Spiral diameter Malla 1: 2,5 x 2 mm. / Malla 2: 2 x 1,8 mm. / Malla 3: 2 x 1,8 mm.
Rod diameter Malla 1: 2,5 mm. / Malla 2: 1,5 mm. / Malla 3: 1,5 mm. mm.
Spiral pitch Malla 1: 25 mm. / Malla 2: 12,5 mm. / Malla 3: 12,5 mm. mm.
Rod pitch Malla 1: 25 mm. / Malla 2: 18,75 mm./ Malla 3: 12,5 mm. mm.

Attachment systems
