Architectural Mesh - RANGE-S-Architectural mesh Model

Español

English

Back to Mesh Models

Previous Model

Next Model

Sample

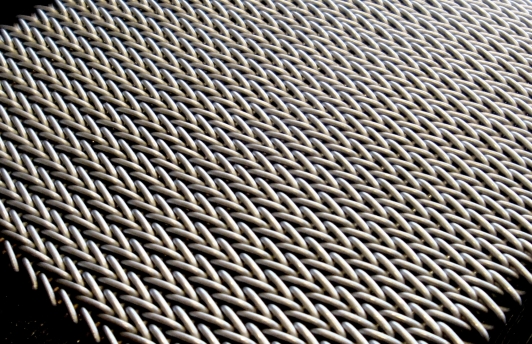

Sample (Detail View)

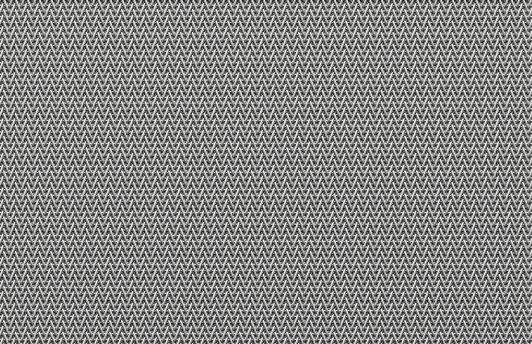

Sample (Front View)

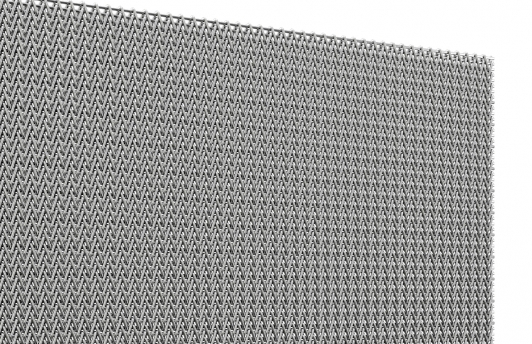

Sample (3/4 View)

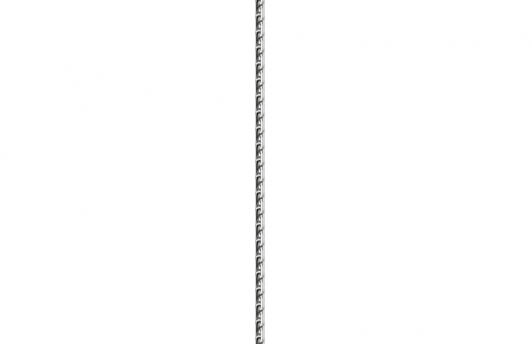

Sample (Side View)

Previous | 1 de 4 | Next

Previous | 2 de 4 | Next

Previous | 3 de 4 | Next

Previous | 4 de 4 | Next

Technical Specs

Model
RANGE-S

Material
Acero Inoxidable

Mesh type
Flexible
One direction

Open Area 5 %
Weight 16,2 Kg/m2
Spiral diameter 1 mm.
Rod diameter 0,5 mm.
Spiral pitch 4 mm.
Vertical pitch 11,5 mm.
Weft wire pitch 2,5 mm.
Transversal pitch 7,5 mm.

Attachment systems
